Unleash the True Power of Your Bass

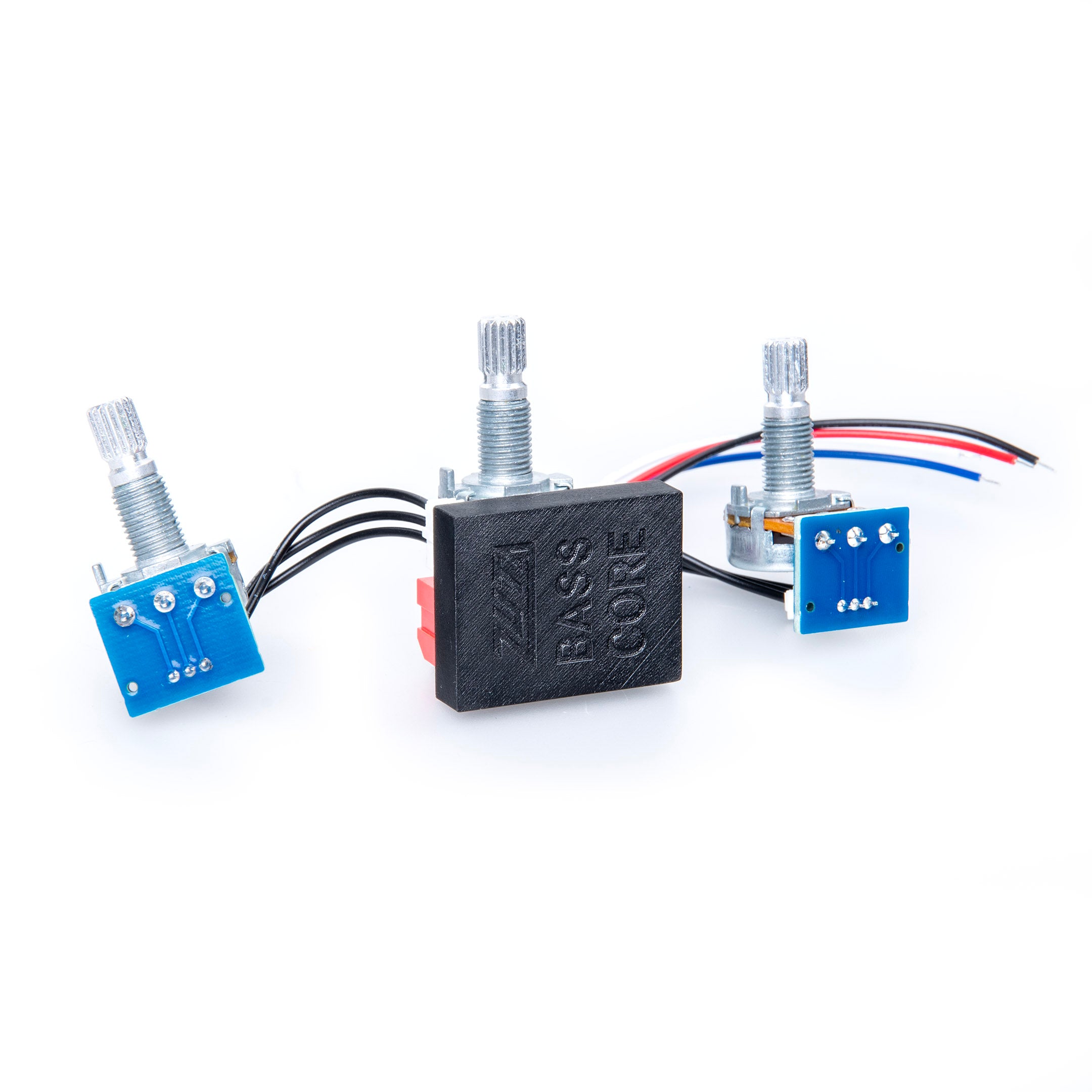

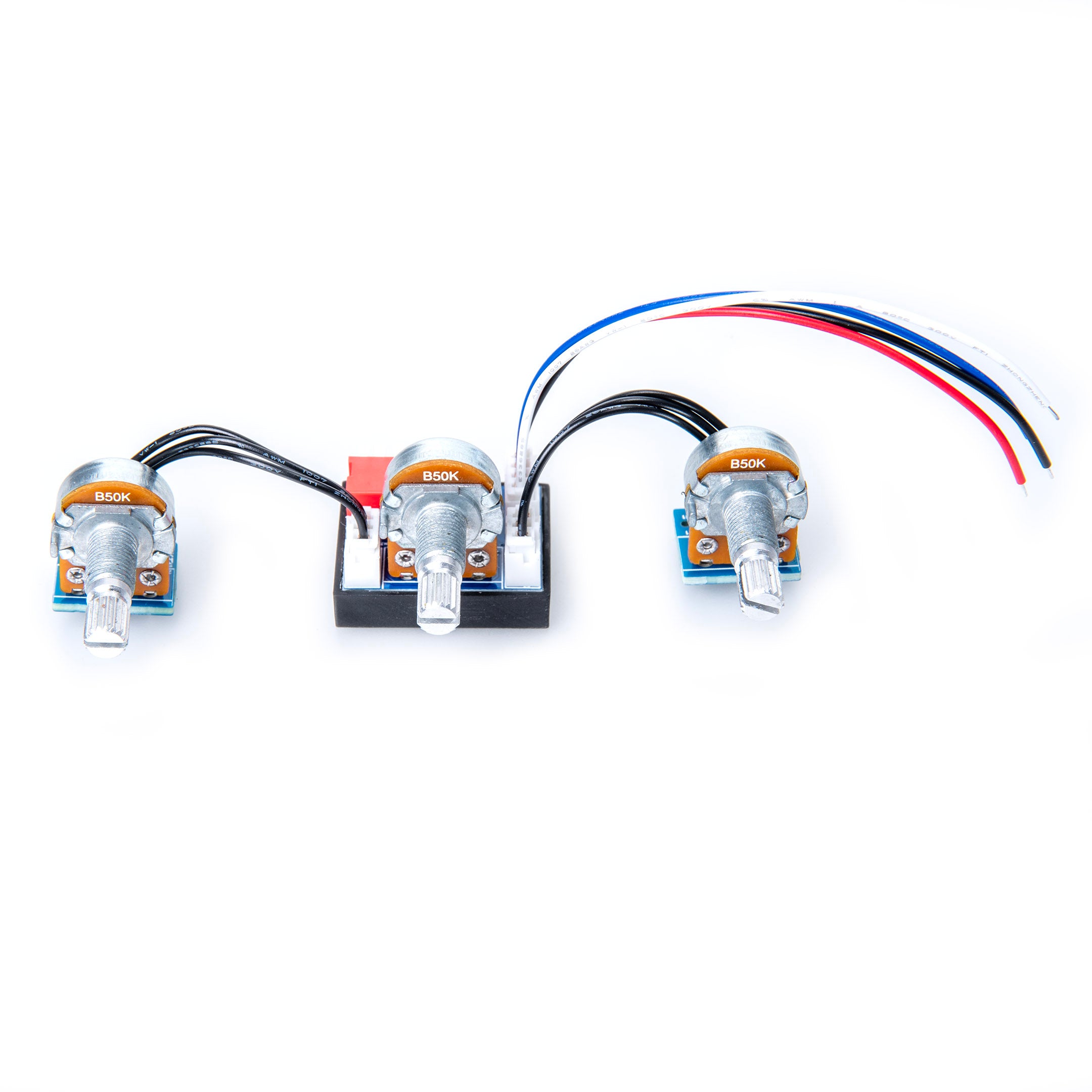

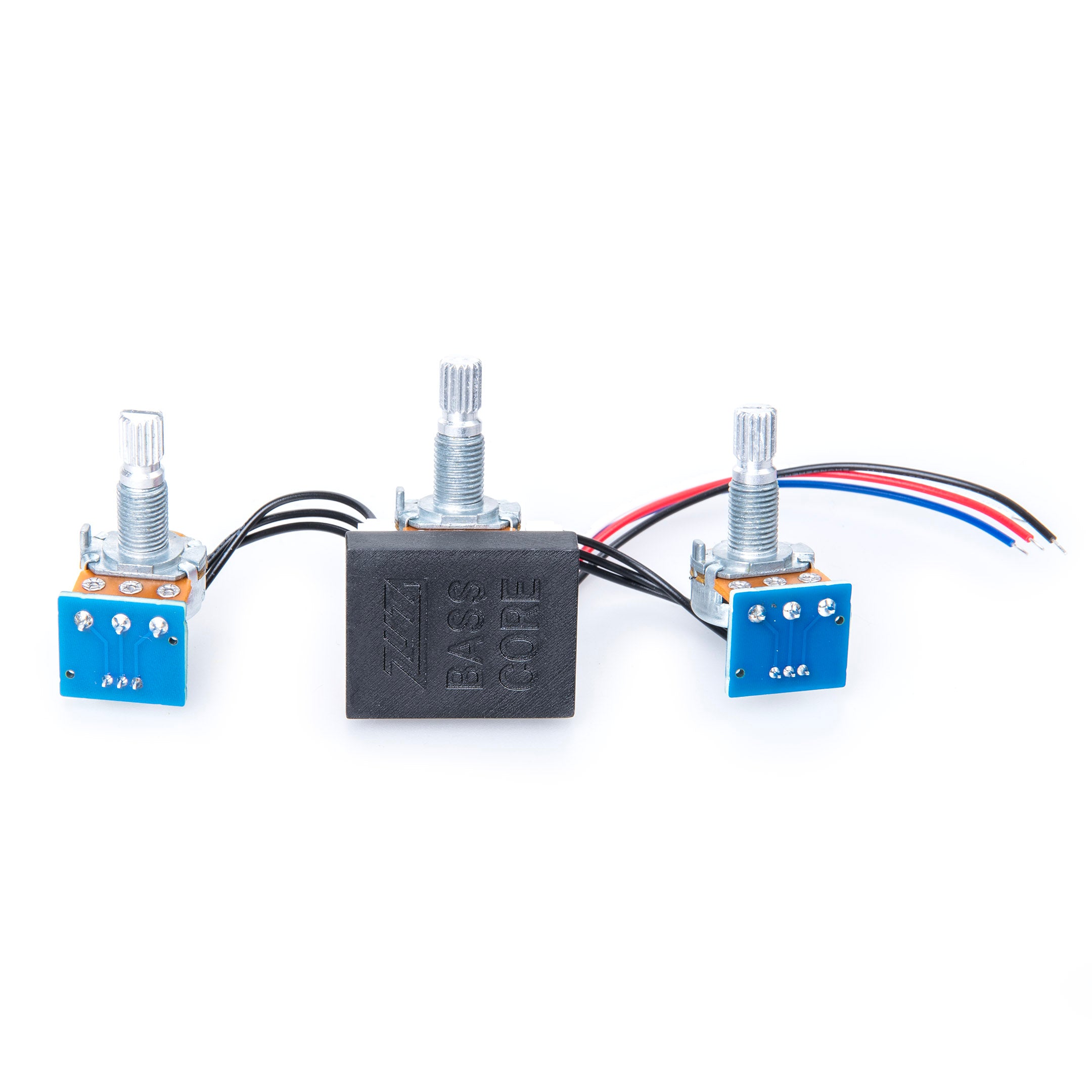

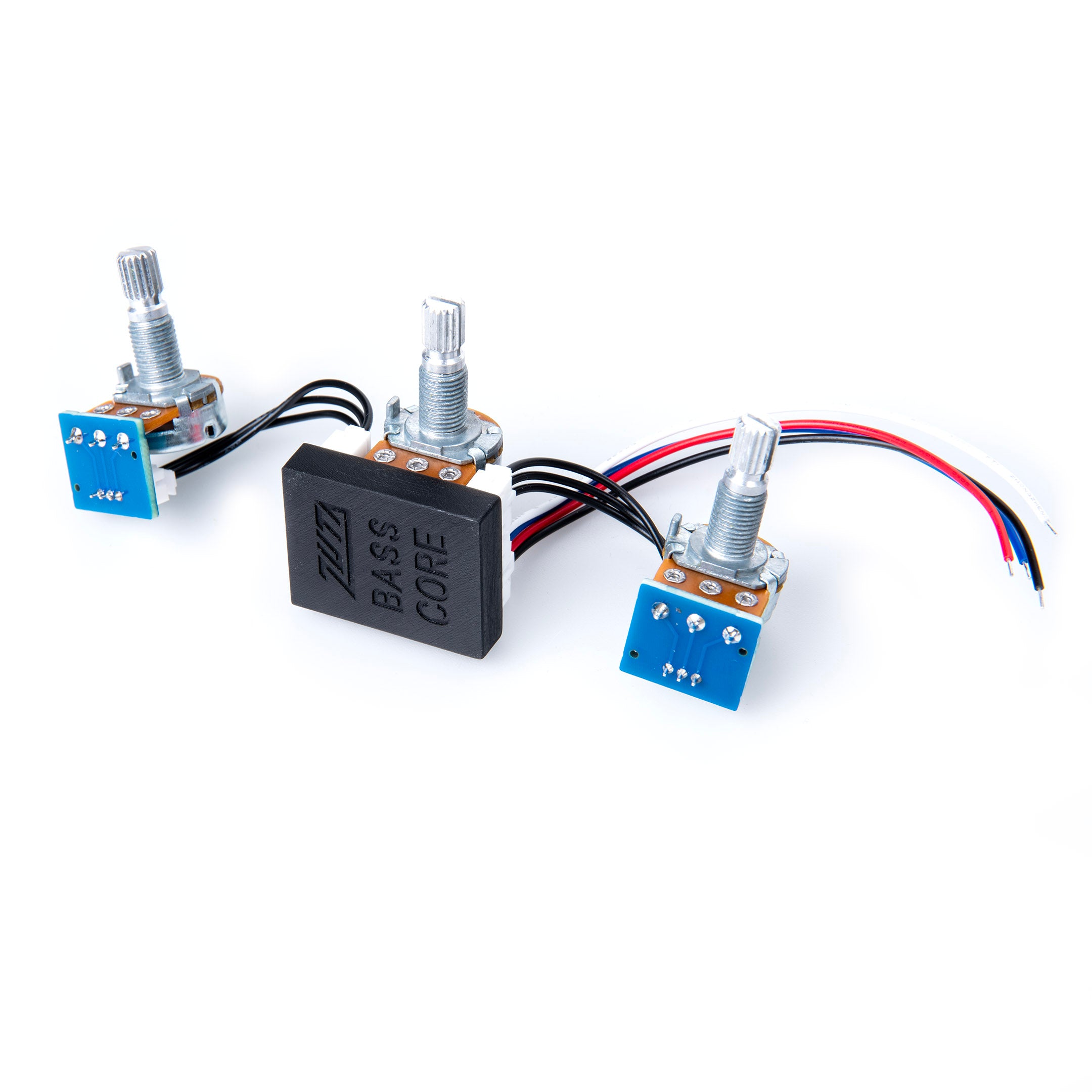

Ready to take your bass tone to the next level? The ZUTA BASS CORE is a professional two-stage preamp and tone-shaping circuit that brings your low frequencies out of the shadows and into the spotlight.
Experience studio-quality sound with a simple, ergonomic installation directly inside your bass.
Dial in Your Perfect Tone
Take complete control of your sound with three intuitive center detent knobs: bass, mid, and treble. Plus, with 6 built-in DIP switches, you can precisely set the mid frequency to shape the perfect curve for any style.
Whether you need to create a thunderous, powerful low end or cut through a dense mix with clarity, the BASS CORE gives you the tools to find your unique voice.
When all knobs are set to neutral, the preamp should be completely transparent, with a maximum deviation of ±0.5 dB across the 20 Hz – 20 kHz range.
Simple and Powerful
Powered by a 9 to 18V supply (like one or two 9V batteries), this compact circuit offers professional-grade amplification and tone shaping in a seamless package.
Elevate your performance and let your low end be heard.
The component choices have been made with the aim of achieving low power consumption, good headroom, and low distortion/noise.
FROM GROOVE TO GROWL
Download the User Manual
FEATURES
Product Specific:
• Dual-stage analog booster tailored for bass frequencies
• Center detent potentiometers for bypass-cut-boost control
• Three front-panel EQ knobs: Bass, Mid, Treble

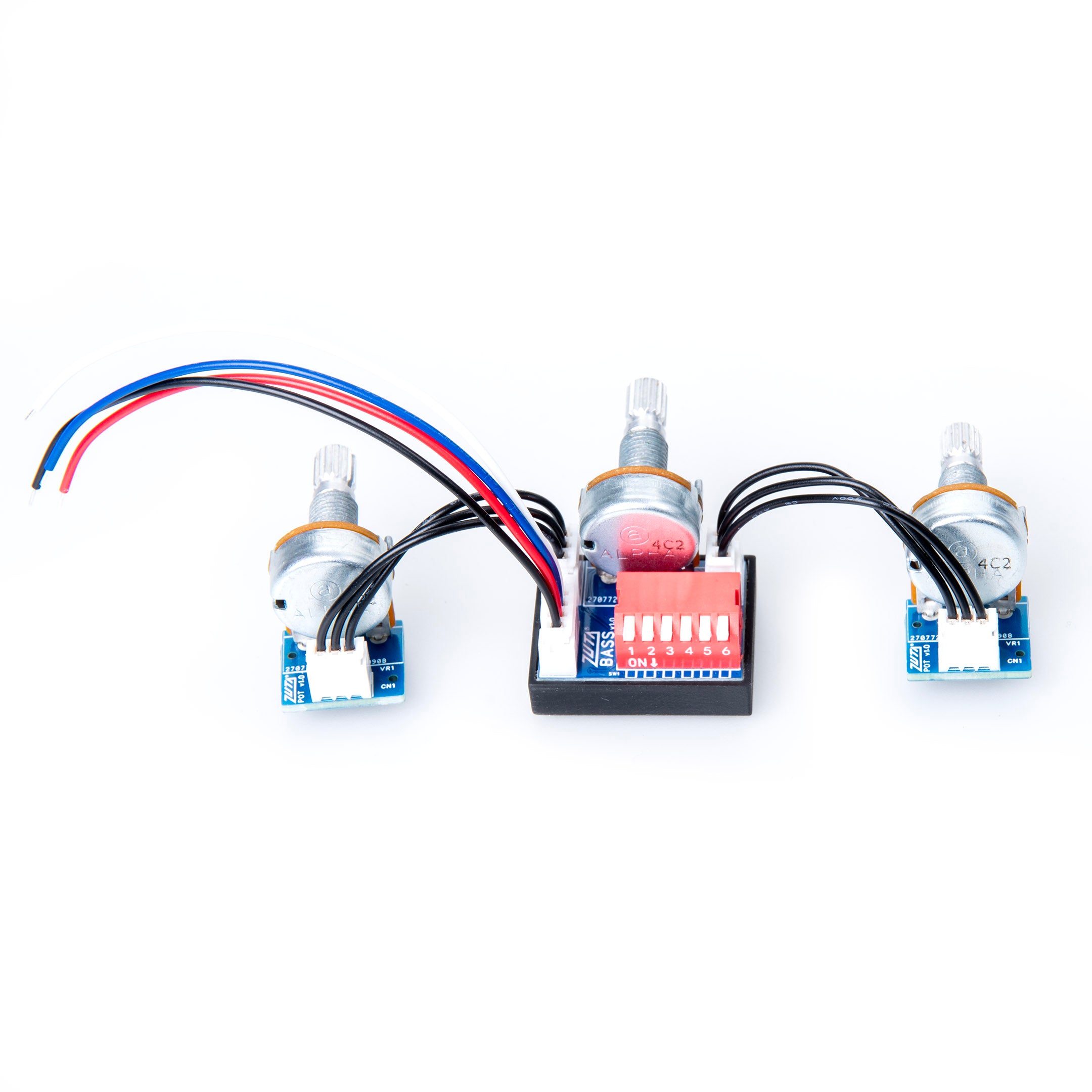

• Six DIP switches for selecting mid-frequency targets
• Transparent boost that preserves low-end definition
• When all knobs are neutral, the preamp should be completely transparent and give a maximum of +-0.5 dB of influence on the signal 20 Hz – 20kHz
• Powered by a standard one or two 9V battery
• Pre-wired connector ensures fast and reliable installation
Series Specific:
• Compact module designed for seamless internal installation
• PCB with all components solid-soldered — no loose internal connectors
• High headroom to handle strong bass signals without clipping
• Ultra-low noise, wide-frequency analog path — uncompressed and dynamic
• Works smoothly with both passive and active bass pickups
Brand Specific:
• Laser-engraved ZUTA BASS CORE casing for durability and style
• Studio-quality onboard boost and tone control, hidden inside your bass
• Easy to install, maintain, and replace battery
• Engineered for professional reliability on stage and in studio
SPECIFICATIONS
• Input Impedance: 1 MΩ
• Output Impedance: 1 KΩ
• Nominal Input Level: up to +20 dBu
• Recommended Load: 10 KΩ or higher
• Boost/cut (approx.): <40 Hz +/- 16 db, Mid +/- 15 dB, >3.25 kHz +/- 12 dB
• Power: 9V (18V) battery, approximately 500 h battery life (depending on use)
• Weight: <100 g (module + pots)
ZUTA BASS CORE integrates cleanly into your bass’s electronics layout:
• Input from the output of your pickup selector or tone pot middle lug
• Output moves on to the guitar jack or next stage
• Ground connects to pickguard or shielding
• 9V battery connects via standard clip connector
• Module features a pre-wired plug that makes installation tidy and dependable
• DIP switches are mounted on the module circuit board for easy access and configuration
