Elevate Your Tone to the Extreme Level
Take your tone further. ZUTA LUXE builds on the CORE foundation using low noice transistors only, and adds advanced shaping options with onboard DIP switches.
Hidden Power, Unmatched Clarity
With a discreet push-pull potentiometer, you can instantly switch from a clean bypass to a powerful analog mid-frequency boost. This isn't just a volume bump; it's a meticulously crafted circuit that brings out clarity, sustain, and presence, ensuring your solos and riffs always cut through the mix.
Always On, Always Ready
Powered by a single 9V battery, the ZUTA CORE is a studio-grade preamp that lives inside your guitar, giving you professional-level tone shaping whenever you need it. Three DIP switches on the module allow you to select between 2 gain modes and 4 tone modes, making LUXE a truly versatile preamp – boutique-level flexibility without a pedalboard.
FROM SUBTLE TO SUPERIOR
Download the User Manual
FEATURES
Product Specific
• Dual-stage analog booster circuit with extended shaping;
• Push-pull potentiometer for ON/OFF switching;
• 3 onboard DIP switches:
– 2 selectable gain modes;
– 4 selectable tone modes;
• Transparent boost with retained dynamics;
• Powered by standard 9V battery;
• Pre-wired connector for simple installation.
Series Specific
• Compact module designed for direct guitar installation;
• Solid-soldered PCB with no fragile connectors inside;
• High headroom for passive and active pickups;
• Ultra-low noise and wide frequency response;
• True analog signal path, uncompressed and natural.
Brand Specific
• Laser-engraved ZUTA LUXE casing;
• Studio-quality boost with customizable voicing;
• Easy to install, easy to service, battery replaceable;
• Built for professionals in both stage and studio environments.
SPECIFICATIONS
• Input Impedance: 1 MΩ;
• Output Impedance: 1 KΩ;
• Nominal Input Level: up to +20 dBu;
• Recommended Load: 10 KΩ or higher;
• Boost (approx.): 25 dB
• Power: 9V battery, ~500 h battery life depending on usage;
• Weight: <100 g (module + pot).

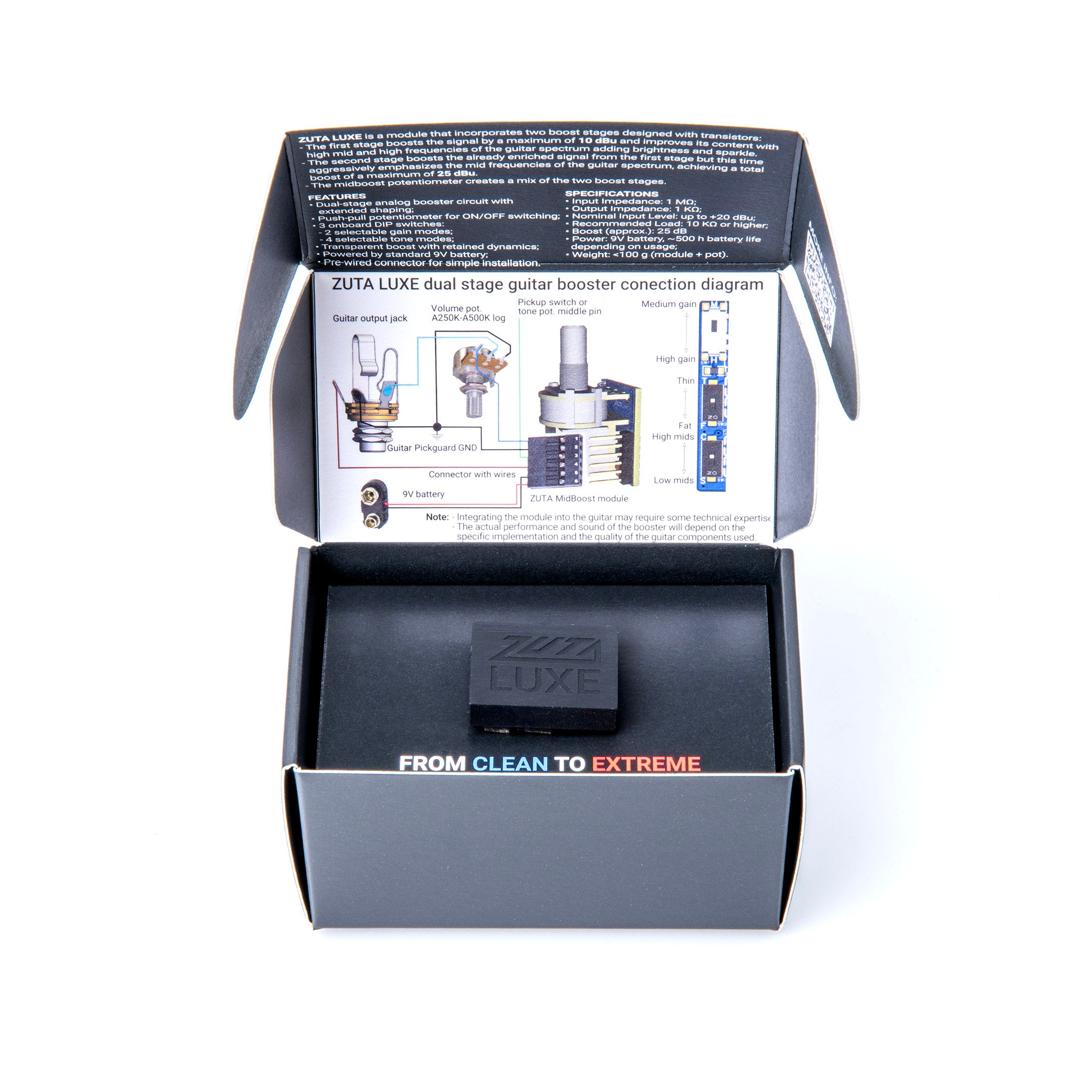

WIRING OVERVIEW
ZUTA LUXE installs directly inside your guitar:
• Input from pickup selector or tone pot middle pin;
• Output to guitar jack;
• Ground to pickguard/shielding;
• Powered by 9V battery (standard clip).
The pre-wired connector ensures quick and secure installation. DIP switches are mounted directly on the module for fast tone/gain configuration.
